U poster

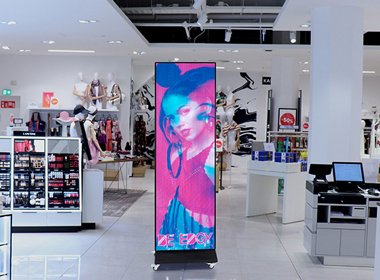

U poster is a freestanding screen used to present captivating videos and images both indoors and outdoors,
including in retail stores, shopping malls. event, exhibitions etc.

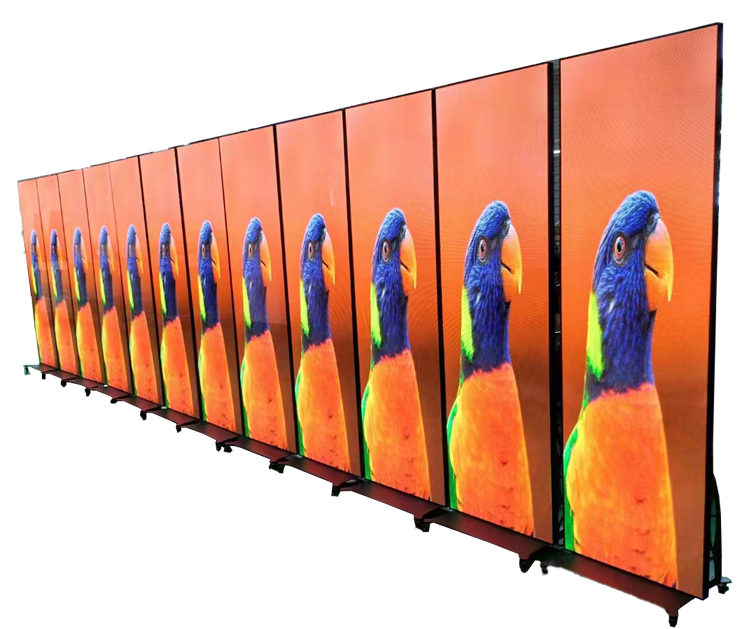

It is versatile as it could be an independent smart LED poster or connect up to 10 LED posters together to be a giant LED video wall to display your stunning content.

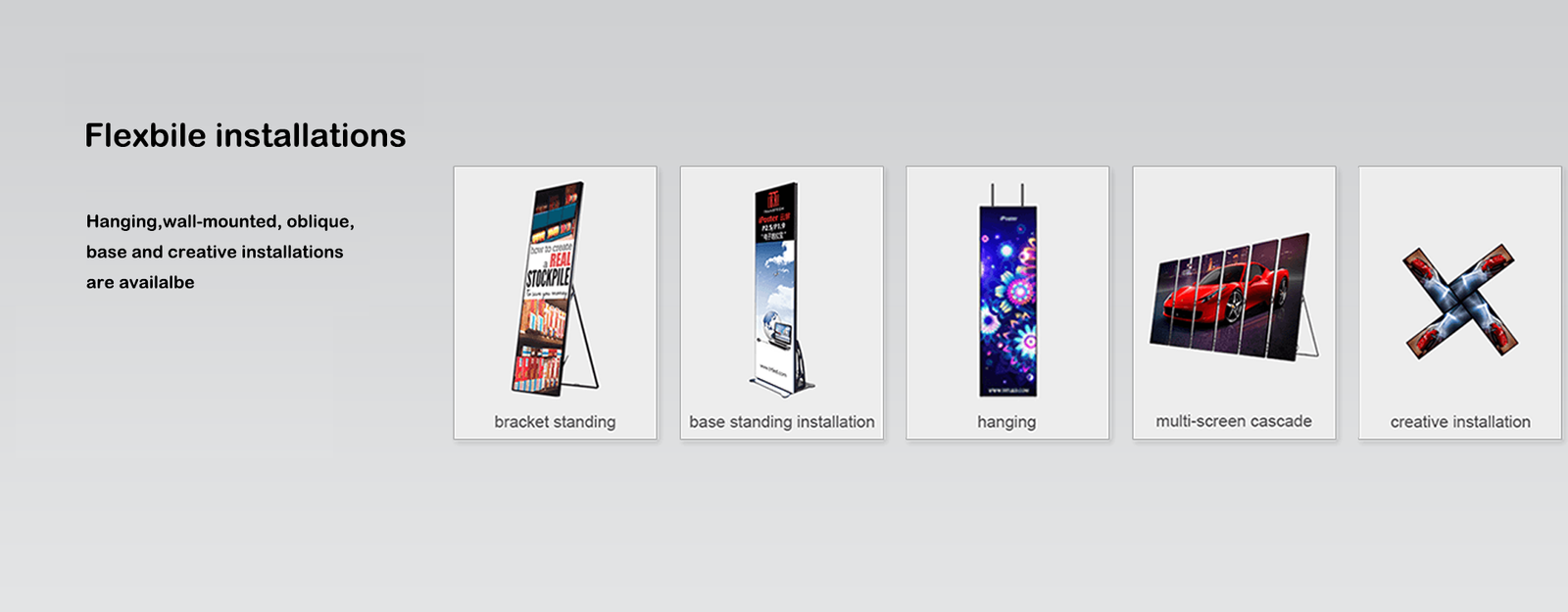

The LED poster displays allow freestanding,wall-mounting, hanging, and you can even add your personality by creative splicing.

Uposter- LED poster series

High-end magnificent in appearance, concise and elegant

1000Nits

Featured by High Brightness based on big chip LED

44%

lighter of a standard display than competition

High Resolution

1.53mm,1.86mm,2mm,2.5mm(indoor)
2mm,2.5mm(outdoor)

plug play.png

High Resolution

1.2mm

1.5mm

1.8mm

2mm

2.5mm

Application Scenarios

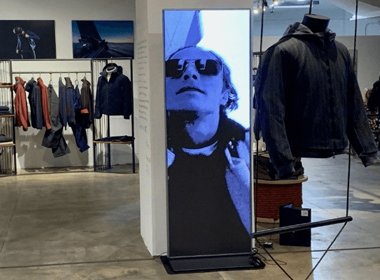

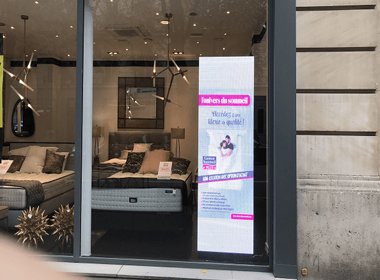

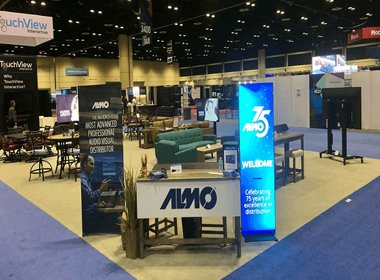

Indoor & Outdoor LED Poster displavs are widely used in retail stores, shopping malls, event, exhibitions, trade show, art galleries & museums...etc.

Technical Parameter

Parameters / Product Model	UP-P1.53I	UP-P1.86I	UP-P2I	UP-P2.5I
Working Environment	Indoor	Indoor	Indoor	Indoor
Pixel Pitch （mm）	1.53	1.86	2	2.5
Pixel Configuration	SMD1010	SMD1515	SMD1515	SMD2020
Module Pixel	208x104	172x86	160x80	128x64
Module Dimensions (WxL)/（mm）	320x160	320x160	320x160	320x160
Panel Deimension	1920x640	1920x640	1920x640	1920x640
Panel IP Rating (Front and Rear)	IP31	IP31	IP31	IP31
Panel weight (kgs)	35	35	35	35
Panel installation type	Fixed	Fixed	Fixed	Fixed
Installation Access	Front access	Front access	Front access	Front access
Color Grayscale (Bit)	14	14	14	14
Gray Scale per Color （level)	65536	65536	65536	65536
Refresh Rate（Hz）	3840	3840	3840	3840
Driving Type	1/26	1/43	1/40	1/32
Brightness (cd/㎡)	600	600	700	800
Optimal Horizontal Viewing Angle（°）	140	140	140	140
Optimal Vertical Viewing Angle（°）	120	120	120	120
AC Input Voltage（V）	90~240	90~240	90~240	90~240
MAX power consumption（W/Panel）	580	580	439	457
Average power consumptio（W/Panel）	195	195	150	153
Storage Temperature（℃）	﹣40~﹢60	﹣40~﹢60	﹣40~﹢60	﹣40~﹢60
Operating Temperature（℃）	﹣40~﹢60	﹣40~﹢60	﹣40~﹢60	﹣40~﹢60
Storage Humidity（RH）	10﹪~95﹪	10﹪~95﹪	10﹪~95﹪	10﹪~95﹪
Operating Humidity（RH）	10﹪~95﹪	10﹪~95﹪	10﹪~95﹪	10﹪~95﹪
Lifetime Typical Value（hrs）	100,000	100,000	100,000	100,000
