UT-Series
UT Series-- Engergy saving product
Sealed module, Common Negative Power Supply
Precise allocation of different working voltages and currents for red, green and blue (RGB) LED chips.
IP66, capable to work in harsh environment

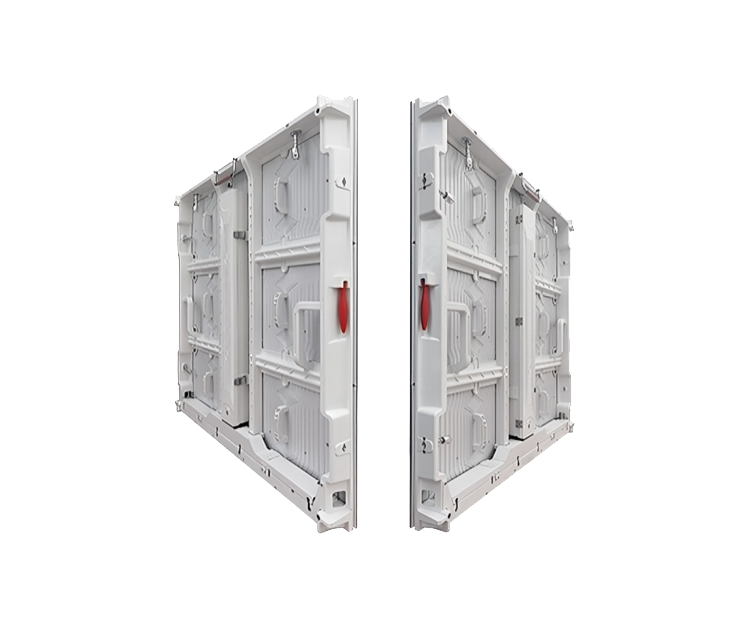

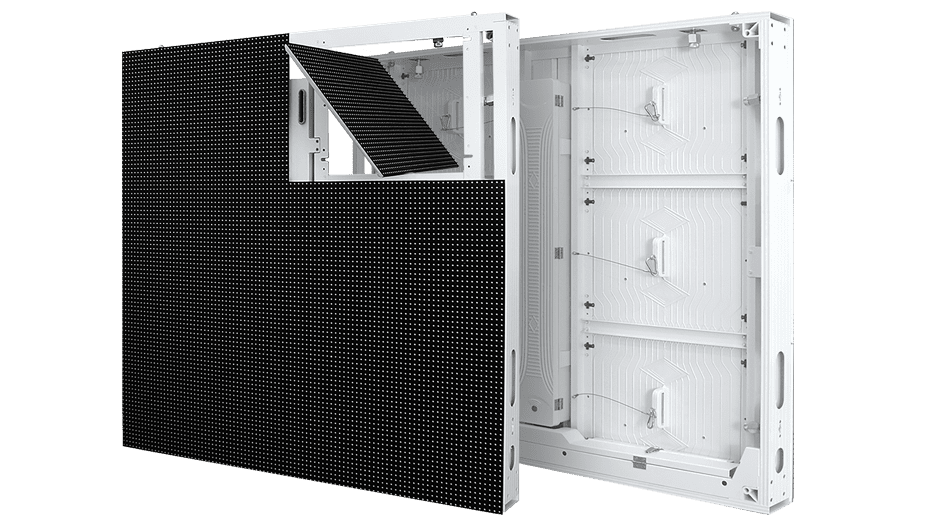

Totally Front & Rear Service
10000nits
Featured by High Brightness based on big chip Gold-Wire LEDs
44%
lighter of a standard display than competition
High Resolution
4mm, 5mm, 6.67mm, 8mm,10mm
IP66
Waterproof
High Resolution
4.4mm
5.7mm
6.67mm
8mm
10mm

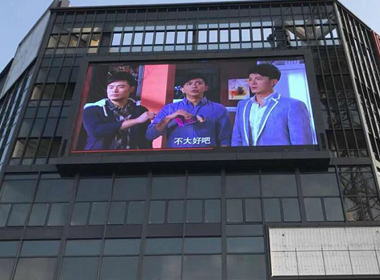

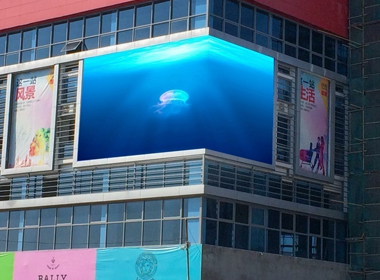

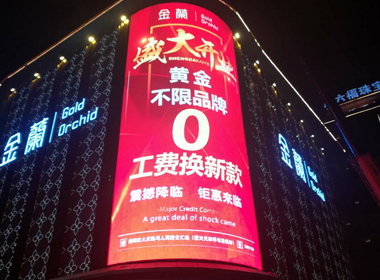

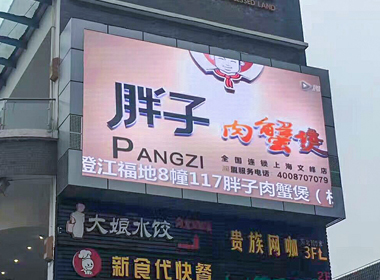

Application Scenarios
Full color outdoor LED displavs are widely used in transportation, schools. media, government projects,
finance, telecommunications and other industries.
Technical Parameter
| MODEL NUMBER | UT-P4OS | UT-P5OS | U-P6.67OS | UT-P8OS | UT-P10OS |
|---|---|---|---|---|---|
| Pixel pitch | 4 | 5 | 6.67 | 8 | 10 |
| LEDs | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD1921 |
| Density of pixel/sqm | 62500 | 40000 | 22477 | 15625 | 10000 |
| Resolution/module | 120*80 | 96*64 | 72*48 | 60*40 | 48*32 |
| viewing angle/horizontal | 140° | 140° | 140° | 140° | 140° |
| Viewing angle/Vertical | 120° | 120° | 120° | 120° | 120° |
| Average power/sqm | 168W | 168W | 168W | 168W | 168W |
| Max power/sqm | 500W | 500W | 500W | 500W | 500W |
| Driving Method | 1/10Scan | 1/8 Scan | 1/6 Scan | 1/5 Scan | 1/2 Scan |
| Refresh rate | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3840HZ | ≥3000HZ |
| Brightness | ≥6000cds/㎡ | ≥6000cds/㎡ | ≥6000cds/㎡ | ≥6000cds/㎡ | ≥7000cds/㎡ |
| Working environment | Outdoor | ||||
| Waterproof | IP66 | ||||

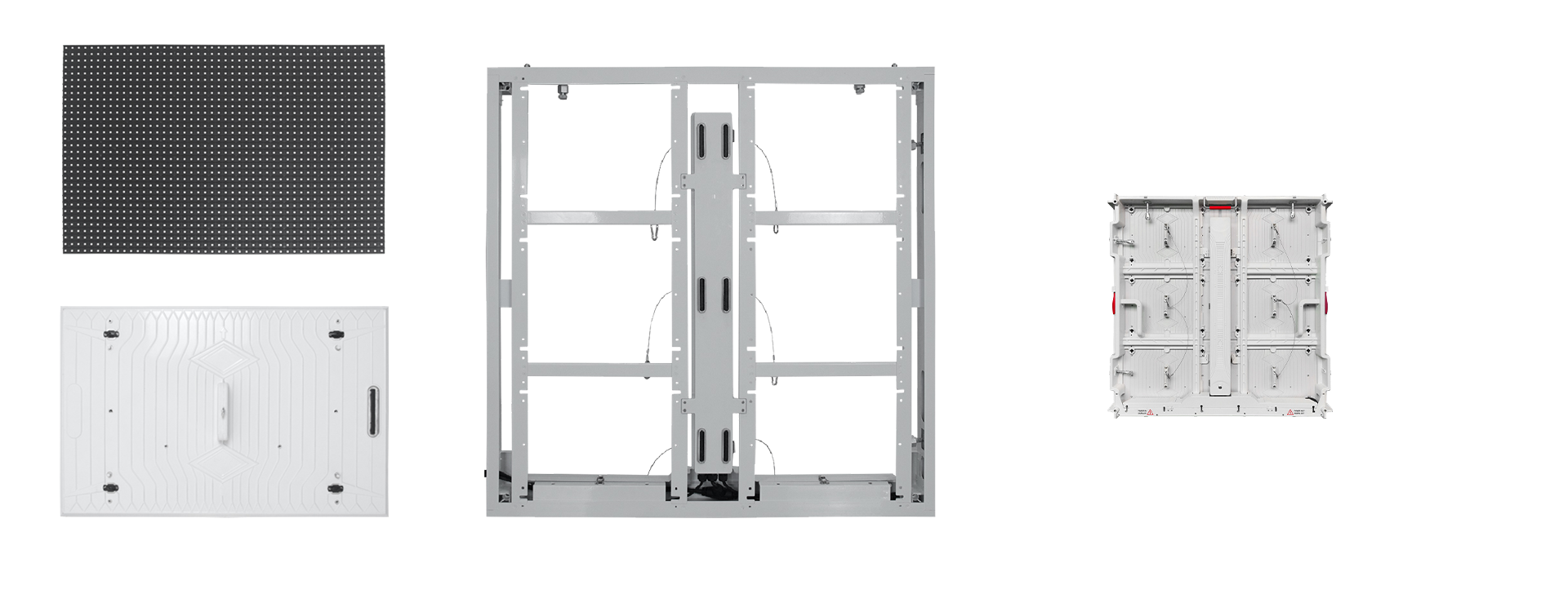

| LED module size | 480*320mm | ||||
| Grey scale/display color | 65536/display 16.7M | ||||
| frame frequency | ≥60HZ | ||||
| Brightness adjustment | Manual R.G.B each color 256,automatic 8 grades are adjustable | ||||
| Input signal | RF、S-Video、RGB、RGBHV、YUV、YC、COMPOSITONS | ||||
| Control system | Colorlight and Novastar | ||||
| System Operation Platform | Windows | ||||
| Malfunction do rate | ＜0.0001 | ||||
| Working Voltage | AC 90V TO 240V | ||||
| Earth leakage current | ＜0.1mA | ||||
| working / Storage temperature | working -30℃～60℃ storage -40℃～85℃ | ||||
